How to configure CAD visualization

Modified on Mon, 29 Jan at 3:04 PM

Configure global CAD visualization settings

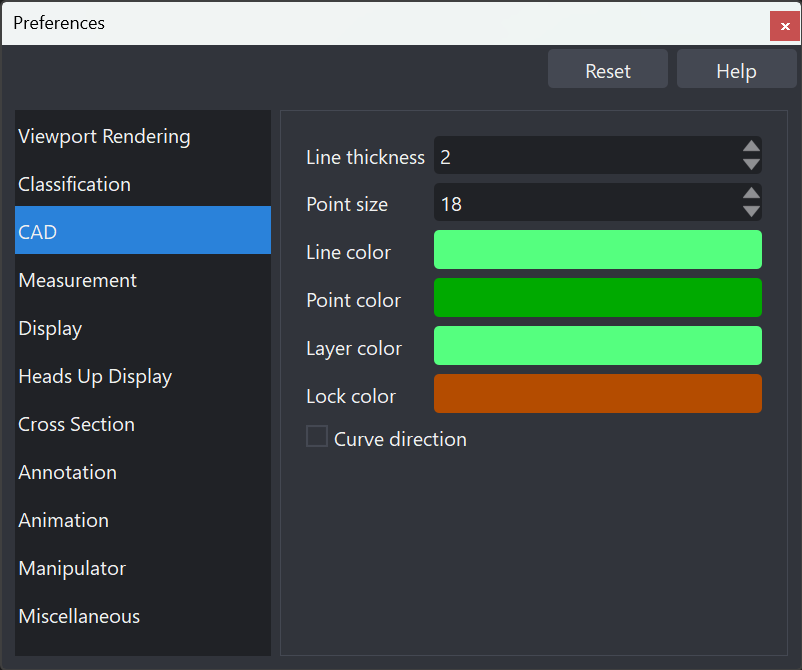

From the CAD Preferences, you can adjust the default settings for the following:

  • Line thickness
  • Point size
  • Line color
  • Point color
  • Layer color
  • Lock color
  • Curve direction


Configure visualization of specific CAD objects

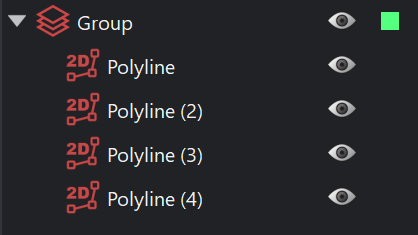

To change the color of individual polylines, arcs, circles, and points, move them under a group object  in the Object List, then click on the color box of the group, and choose the desired color.

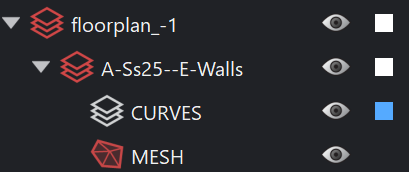

To change the color of CAD entities contained in a reference layer , click on the color box of the reference layer, and choose the desired color.
